Parent Layer: WRPJFD

Name: Barrage /Weir/Annicut

Display Field: bwa_name

Type: Feature Layer

Geometry Type: esriGeometryPoint

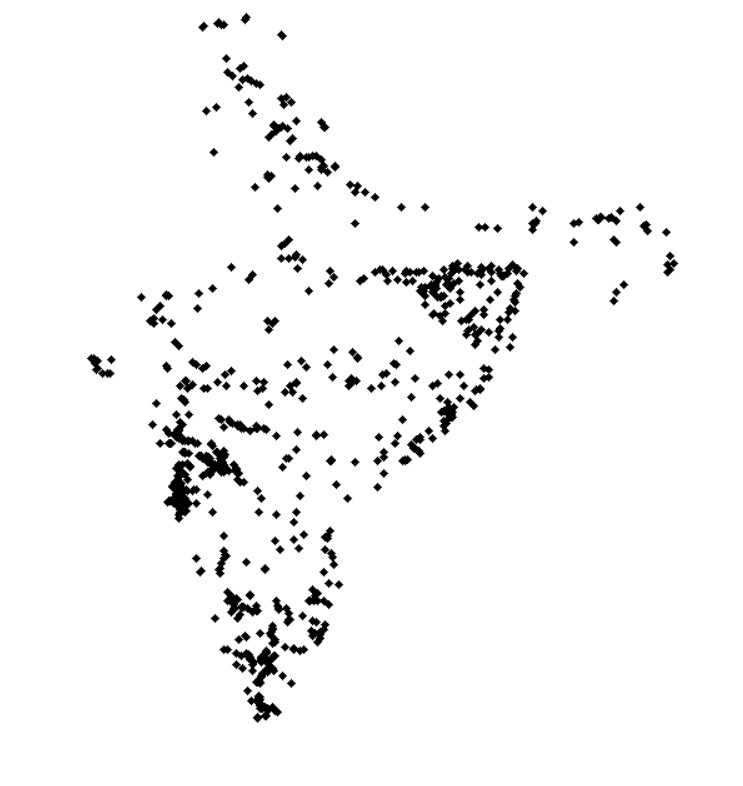

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>The layers contains Barrage, Weir and Anicuts of India. There are 154 barrages, 36 anicuts and 161 weirs marked all over India.</SPAN></P></DIV></DIV></DIV>

Copyright Text: Generated under India-WRIS using CWC and state water resources/irrigation datasets etc

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 7826102.0649
YMin: 930679.2934999987
XMax: 1.0478126082199998E7
YMax: 4103074.6428000033
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [135, 74, 48, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID )
• bwa_name ( type: esriFieldTypeString, alias: Name of Barrages/Weir/Anicut, length: 254 )
• strucode ( type: esriFieldTypeString, alias: Structure Code, length: 254 )
• bwa_lat ( type: esriFieldTypeDouble, alias: Latitude )
• bwa_long ( type: esriFieldTypeDouble, alias: Longitude )
• bwa_ncity ( type: esriFieldTypeString, alias: Nearest City, length: 254 )
• dtcode ( type: esriFieldTypeString, alias: District, length: 254 )
• stcode ( type: esriFieldTypeString, alias: State, length: 254 )
• rivcode ( type: esriFieldTypeString, alias: River, length: 254 )
• bacode ( type: esriFieldTypeString, alias: Basin, length: 254 )
• bwa_cmn_yr ( type: esriFieldTypeString, alias: Year of Commencement, length: 254 )
• bwa_cmp_yr ( type: esriFieldTypeString, alias: Year of Completion, length: 254 )
• bwa_disc_df ( type: esriFieldTypeDouble, alias: Design Flood Discharge (Cumec) )
• bwa_riv_wd ( type: esriFieldTypeString, alias: Width of River(Meter), length: 254 )
• bwa_len ( type: esriFieldTypeDouble, alias: Length of Barrage & Anicut (Meter) )
• bwa_ht ( type: esriFieldTypeString, alias: Height upto Crest (Meter), length: 254 )
• bwa_bay_no ( type: esriFieldTypeString, alias: Number of Bays, length: 254 )
• bwa_bay_wd ( type: esriFieldTypeString, alias: Width of Bay (Meter), length: 254 )
• bwa_spil_type ( type: esriFieldTypeString, alias: Type of Spillway Gate, length: 254 )
• bwa_spil_sz ( type: esriFieldTypeString, alias: Size of Spillway Gates, length: 254 )
• bwa_crt_vel ( type: esriFieldTypeString, alias: Crest Level of Spillway (Meter), length: 254 )
• bwa_pond_lev ( type: esriFieldTypeString, alias: Pond Level (Meter), length: 254 )
• bwa_hfl ( type: esriFieldTypeString, alias: Highest Flood Level (Meter), length: 254 )
• bwa_bay_no2 ( type: esriFieldTypeString, alias: Number of Under Sluice Bay, length: 254 )
• bwa_bay_sz ( type: esriFieldTypeString, alias: Size of Under Sluice Bay (Meter x Meter), length: 254 )
• bwa_gate_type ( type: esriFieldTypeString, alias: Type of Under Sluice Gate, length: 254 )
• bwa_gate_sz ( type: esriFieldTypeString, alias: Size of Under Sluice gate (Meter x Meter), length: 254 )
• bwa_hyd_enrg ( type: esriFieldTypeString, alias: Means for dissipating Energy (Hydraulic), length: 254 )
• bwa_head_loca ( type: esriFieldTypeString, alias: Location of Head regulator from Barrage, length: 254 )
• bwa_head_ang ( type: esriFieldTypeString, alias: Orientation of Head Regulator with respect to Barrage axis (Angular Unit), length: 254 )
• bwa_head_wd ( type: esriFieldTypeString, alias: Width of Head Regulators, length: 254 )
• bwa_head_enrg ( type: esriFieldTypeString, alias: Means of dissipating energy below head (canal head regulator), length: 254 )
• bwa_disc_can ( type: esriFieldTypeString, alias: Maximum discharge of Canal, length: 254 )
• bwa_sed ( type: esriFieldTypeString, alias: Sediment excluding devices, length: 254 )
• bwa_comment ( type: esriFieldTypeString, alias: Remarks, length: 254 )
• uname ( type: esriFieldTypeString, alias: Created by User, length: 254 )
• bwa_name_al ( type: esriFieldTypeString, alias: Name of Barrages/Weir/Anicut Alias, length: 254 )
• bwa_status ( type: esriFieldTypeString, alias: Status, length: 254 )
• bwa_ses_zone ( type: esriFieldTypeString, alias: Seismic Zone, length: 254 )
• bwa_oper_main_age ( type: esriFieldTypeString, alias: Operating & Maintainance Agency, length: 50 )
• bwa_mod_oper ( type: esriFieldTypeString, alias: Mode of Operation, length: 50 )
• bwa_hoist_arrg ( type: esriFieldTypeString, alias: Type of Hoisting Arrangement, length: 50 )
• bwa_typ_wean ( type: esriFieldTypeString, alias: Type of Weir / Anicut, length: 50 )
• bwa_inst_inter_ager ( type: esriFieldTypeString, alias: Barrages/Weir/Anicut Interstate / International Agreement, length: 3 )
• bwa_inst_inter ( type: esriFieldTypeString, alias: Barrages/Weir/Anicut InterState / International, length: 50 )
• bwa_perliament ( type: esriFieldTypeString, alias: Barrages/Weir/Anicut as per Parliamentary Constituency, length: 50 )
• class ( type: esriFieldTypeString, alias: Class, length: 7 )
• bwa_head_rb ( type: esriFieldTypeInteger, alias: Numbers of Head Regulator Bays )
• bwa_wd_rb ( type: esriFieldTypeInteger, alias: Width of Head Regulator Bays )
• bwa_head_rg ( type: esriFieldTypeInteger, alias: Numbers of Head Regulator Gates )
• bwa_type_head_rg ( type: esriFieldTypeString, alias: Type of Head Regulator Gates, length: 50 )
• bwa_size_head_rg ( type: esriFieldTypeDouble, alias: Size of Head Regulator Gates )
• bwa_hoist_arr_head_rg ( type: esriFieldTypeString, alias: Type of Hoisting Arrangement for Head Regulator Gates, length: 50 )
• bwa_spil_no ( type: esriFieldTypeInteger, alias: Number of Spillway Gates )
• bwa_gate_no ( type: esriFieldTypeInteger, alias: Number of Under Sluice Gate )
• bwa_cn_gate_no ( type: esriFieldTypeInteger, alias: Number of Canal Gates )
• bwa_ph_gate_no ( type: esriFieldTypeInteger, alias: Number of Power House Gates )
• bwa_spil_cap ( type: esriFieldTypeDouble, alias: Spillway Capacity (Cumec) )
• bwa_spil_lev ( type: esriFieldTypeDouble, alias: Crest Level of Spillway (m) )
• shape ( type: esriFieldTypeGeometry, alias: SHAPE )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
